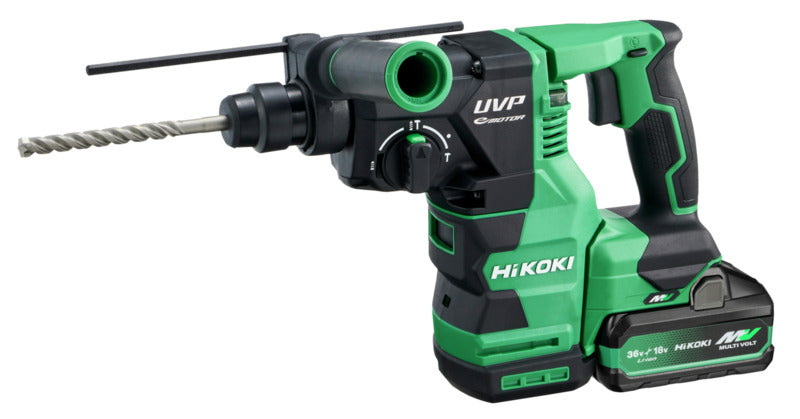

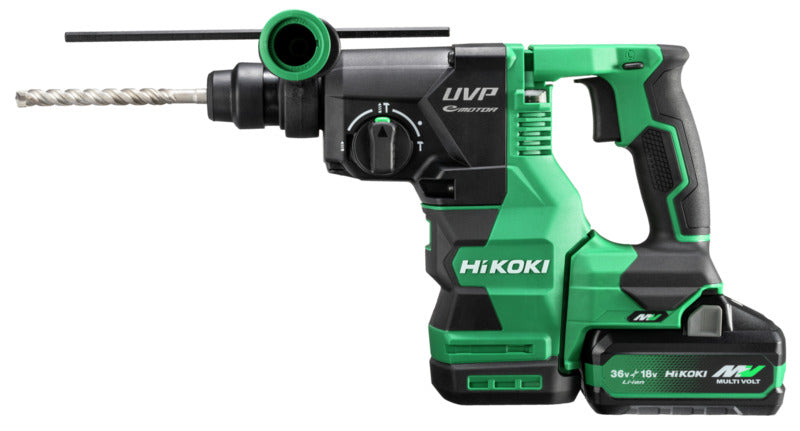

Full Set | 4.0Ah Spec HiKoki |ハイコーキ(Hikoki_ex-HitachiKoki) 36V Hammer Drill SDS-plus DH3628DA 2WPZ Full Set

Product Name:Hammer Drill SDS-plus
Model Number:DH3628DA
Product Code:57803211
JAN/EAN Code:4966376405480
Specifications:(2WPZ)

Product Overview:
This product is a 36V cordless rotary hammer drill with a D-handle, compatible with SDS-plus shanks, and capable of drilling concrete up to a maximum diameter of 28mm. It offers three modes of operation: "Rotation + Hammering," "Rotation," and "Hammering," and is equipped with various additional features such as a low-vibration mechanism, RFC (Reactive Force Control), and LED vertical support. Furthermore, it adopts a HEPA filter and cyclone separation system, ensuring consistent suction power, and can be fitted with a lightweight and compact dust collection system (sold separately).

Applications:
Drilling into concrete
Drilling into tiles and bricks (impact force adjustable with stepless speed switch)
Drilling pilot holes for various plugs such as anchors and nylon plugs
Driving anchors (using an anchor setter)
Chipping, grooving, cornering, and stripping concrete
Drilling into metal and wood (using a drill chuck + chuck adapter)

Product Features:
Top-class drilling speed and chipping performance for light work
Low vibration (UVP) for reduced fatigue
-Equipped with dynamic vibration absorber
-Equipped with anti-vibration handle
Various additional functions
-LED vertical support function
-RFC function
-2-stage rotation speed switching function
-Auto-stop function
-LED light
Dust collection system (sold separately) can be attached
-Slim, lightweight, and well-balanced
-Sustained suction power with cyclone separation system
-Clean exhaust with HEPA filter
Equipped with high-durability brushless motor
D-shaped handle for easy handling with a center of gravity close to the hand

Standard Price: 125,800 JPY
Standard Included Battery:BSL36B18X Lithium-ion 4.0Ah Battery x 2 (36v x 4.0Ah = 144Wh)
Standard Included Charger: UC18YDL2
Standard Accessories: Side handle,Depth gauge,Battery cover
Standard Included Package:System Case 3

Body Weight ( 本体のみ(Bare-Tools/Tool Body Only) , excluding cord) kg: 3.00
Body Weight (including battery) kg: 4.00
Body Dimensions (Overall Length) mm: 373.0
Body Dimensions (Overall Width) mm: 91.0
Body Dimensions (Overall Height) mm: 240.0
Body Color:アグレッシブグリーン(Aggressive Green)
Battery Voltage (DC) V: 36
Motor: Brushless
Power Source: DC
Compatible Batteries:
BSL36A18
BSL36A18X
BSL36A18B
BSL36A18BX
BSL36B18
BSL36B18X
BSL36B18B
BSL36B18BX
BSL36C18

Full-load Impact Rate min-1 (impacts/min): 0-4300
Low Vibration System UVP: 1
Anti-vibration Handle: 1
Aluminum Double Insulation Structure: On-lock function
One-push Bit Installation: 1
Constant Speed Control: 1
Stepless Speed Change: Switch
Drilling Capacity Steel (Dust Collection System Not Attached) mm: 13
Drilling Capacity Wood (Dust Collection System Not Attached) mm: 32
Drilling Capacity Concrete Drill Bit (Dust Collection System Attached) mm: 4.3-20
Drilling Capacity Concrete Drill Bit (Dust Collection System Not Attached) mm: 3.4-28

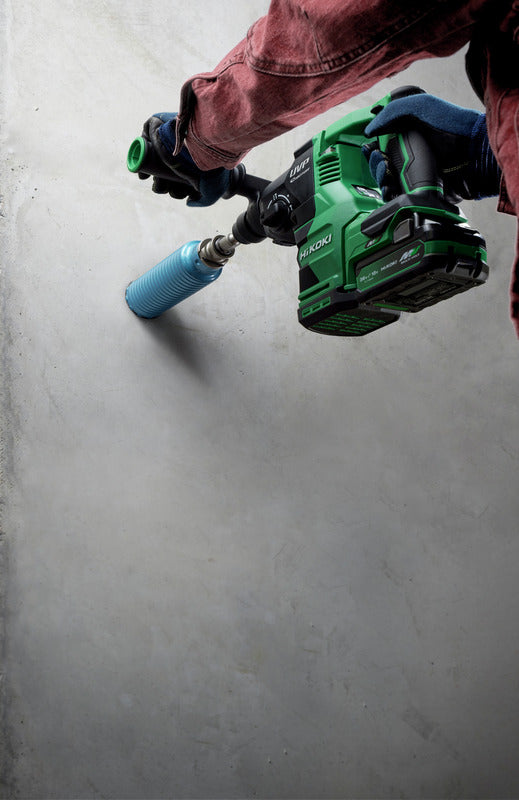

Drilling Capacity Concrete Core Bit (Dust Collection System Not Attached) mm: 25-50
Drilling Capacity Diamond Core Super Diamond Core (Dust Collection System Not Attached) mm (Japan specifications only): 65
Drilling Capacity Hyper Diamond Core Super Wood Core (Dust Collection System Not Attached) mm (Japan specifications only): 65
Rotation Speed min-1 (revolutions/min): 0-950
Dust Collection System Connectable: 1
RFC Function: 1
Slip Clutch: 1
Dual-molded Switch Handle: 1
Dual-molded Side Handle: 1
Auto-stop Function: 1
Forward/Reverse Rotation Switching: 1
Number of Modes: 3
