Makita 40Vmax Rechargeable Impact Driver TD002G 本体のみ(Bare-Tools/Tool Body Only)

Makita 40VMax rechargeable impact driver TD002G 1 unit 本体のみ(Bare-Tools/Tool Body Only)
◆TD002GZ Blue

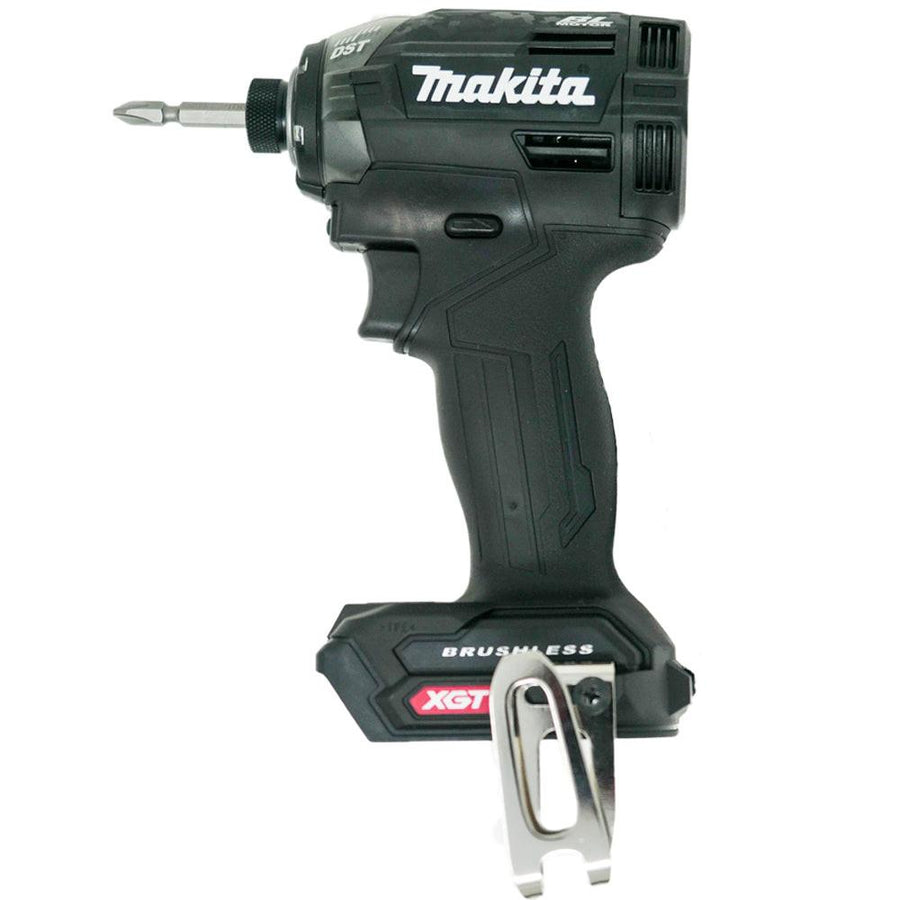

◆TD002GZB Black
◆TD002GZO Olive
◆TD002GZFY Fresh Yellow Limited edition
◆TD002GZAP Authentic Purple Limited edition

●DST (Dual Spring Technology) adopted
Equipped with two different springs. Automatically adjusts impact force according to workload.
マキタ(Makita)It achieves the fastest tightening speed ever while remaining incredibly easy to use.
● Reduced cam-out and improved fastening speed by approximately 10%
The first soft spring starts the impact quickly. Low recoil and vibration reduced by about 10%.
A second, harder spring is added for a stronger impact. Fastening speed is improved by approximately 10%.
● マキタ(Makita) Fastest tightening ever
Maximum impact speed: 4,600 min-1 (in fastest mode). Maximum tightening torque: 220 Nm.
Powerfully tightens everything from metal screws to coarse threads. Work speed improved by approximately 25%.
●Can be customized with a dedicated app and adapter (sold separately)
With the dedicated app and the separately sold communication adapter (ADP11), you can set up "4 impact modes" and "6 easy modes."
Each mode and "LED light" can be customized.



● 4 impact modes (fastest, strong, medium, weak)
Each mode can be customized with the app. From power and speed-prioritized work,
Supports even delicate tightening of small screws.
●4 LED lights
You can customize the light intensity and afterglow time via the app.
●Up to 10 customized settings can be registered
There are five initial presets that you can try right away. No settings are required and you can use them right away.
●Protects against dust and rain, dustproof and waterproof rating IP56
●Dustproof and waterproof plastic case (excluding storage compartment for small items)
●4 LED lights
It is bright even when working in corners, and workability has been improved by repositioning the lights.
When the forward/reverse lever is in neutral and the trigger is pulled, it becomes "light mode" and provides simple lighting.
Can also be used as.

①Wood mode
"usually"
Open the trigger fully to start tightening "slowly," then automatically change speed to "fastest" and tighten all at once.
Prevents screws from falling over.
"Customization"
The soft start speed and initial and post-impact RPMs can be adjusted.

② For texture (thin plate mode) ③ For texture (thick plate mode)
"usually"
Thin plate mode: After the screw penetrates, it automatically stops when an impact is detected.
Thick plate mode: Reduces screw head skipping and cam-out.
"Customization"
The soft start speed and maximum RPM can be adjusted.
The impact time can be adjusted in thin plate mode, and the maximum rotation speed after impact can be adjusted in thick plate mode.

④Bolt 1 mode ⑤Bolt 2 mode
"usually"
Bolt 1: Forward rotation stops immediately after impact. Reverse rotation stops after impact is complete.
Bolt 2: Forward rotation stops 0.3 seconds after impact detection. Reverse rotation stops after impact ends.
"Customization"
The initial maximum rotation speed, impact time, and bolt 2 loosening amount can be adjusted.

⑥Bolt 3 Mode
"usually"
Forward rotation stops 1.0 second after impact detection. Reverse rotation starts at a low speed of 180 min-1 (stops at any position) after impact is complete.
"Customization"
The initial maximum rotation speed, impact time, and release rotation speed after impact are adjustable.

Fastening capacity (mm)
Machine screws M4 to M8
Standard bolts M5 to M16
High strength bolts M5 to M14
Course thread 22 to 125

Maximum tightening torque (N・m) 220

Rotational speed (min-1) 回転/分(Revolutions per minute-rpm) ]
Fastest 0 to 3,700
Strong 0～3,200
Medium 0 to 2,100
Weak 0 to 1,100

Easy mode rotation speed (min-1) 回転/分(Revolutions per minute-rpm) ]
Wood 0-1,800
Volts [1] 0 to 2,700
Volts [2] 0 to 3,700
Volts [3] 0 to 3,700
Thin textured plate 0-2,900
Tex thick plate 0-3,700

Number of strokes (min-1) [strokes/min]
Fastest 0 to 4,600
Strong 0～3,600
Medium 0 to 2,600
Weak 0 to 1,400

Easy mode stroke count (min-1) [strokes/min]
Wood 0-4,600
Bolt [1] Stops immediately after impact begins
Volts [2] 0 to 4,600
Volts [3] 0 to 4,600
Thin texture plate: Stops immediately after impact starts
TEX thick plate 0-2,600

Machine dimensions (mm)
Length 119
Width 86
Height 247
Mass (kg) 1.6

function
High power brushless motor
Work mode Easy 6 mode
Power switching: 4 levels
Dual Spring
Customize with the app
Zero shake
One-touch bit attachment
Impact mode hand switch
Dustproof and waterproof APT IP56 (battery IP56)
4 LED lights (with light mode)

Recommended Battery
BL4020 ◎
BL4025 ◎
BL4040 ◎
BL4040F ◎
BL4050F ○
BL4080F ○

→ Instruction manual PDF
